Net top (meshed type) belt is produced in 5900, 4800, 800, 900, and 400 series depending on the pitch and shape, and there will be more diverse products produced in the future.
The purpose of belt changes depending on how much it opens.

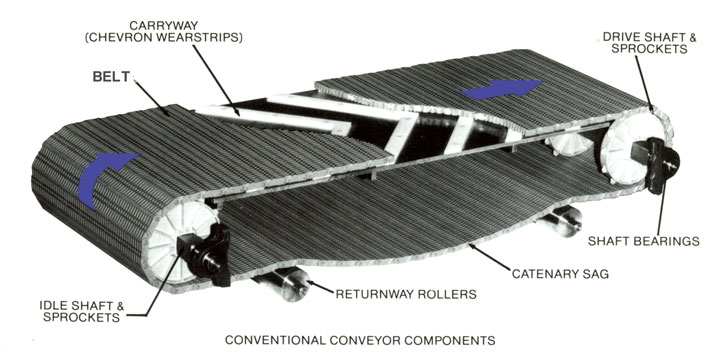

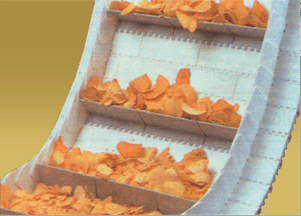

Open ratio of 0, 13, 15, 18, 34 and 40% exists. It is used for meat processing and transport, and vegetable and fruit transport, and it is easy to clean.
The width of belt can be assembled widely. |
| |
네트탑(망사 형태)의 벨트는 피치와 모양에 따라 5900, 4800, 800, 900, 400 시리즈로 생산되며, 앞으로 다양하게 개발될 것이다. 벨트는 오픈 율에 따라 사용용도가 달라진다.
오픈 율 0%, 13%, 15%, 18%, 34%, 40% 있다. 사용용도는 육가공이송, 채소나 과일 이송에 많이 쓰이며 청소가 용이하다. 벨트 폭은 넓게 조립할 수 있다. |
|
|
| |
|
| |
|
|
| |

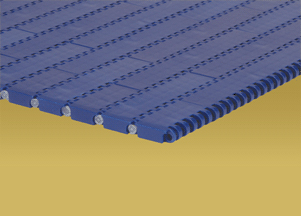

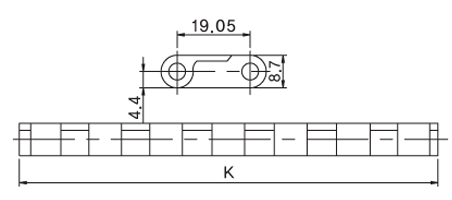

| NET TOP CHAIN
SERIES 5935 |
STRAIGHT RUN |
|
| |
|
|
| |
Closed Surface
Material : LF Acetal (Brown) |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF5935-K06
LF5935-K12
LF5935-K18
LF5935-K24
LF5935-K30
LF5935-K36
|
1313
1314
1315
1316
1317
1318
|
152
305
457
610
762
914
|
0.9
1.8
2.2
3.7
4.5
5.5
|
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF5935-K42
LF5935-K48
LF5935-K54
LF5935-K60
LF5935-K66
LF5935-K72 |
1319
1320
1321
1322
1323
1324 |
1067
1219
1372
1524
1676
1829 |
6.4
7.3
8.2
9.2
10.1
11.0 |
|
|
| ※ Standard length : 1.010m (53links) |
| |
 |

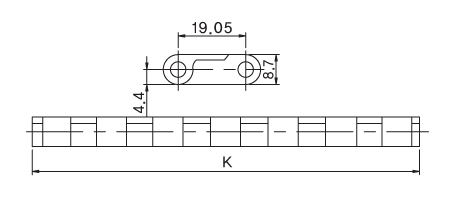

| |
| |
| NET TOP CHAIN SERIES 5936 |
STRAIGHT RUN |
|
| |
|
|
| |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF5936-K06
LF5936-K12
LF5936-K18
LF5936-K24
LF5936-K30
LF5936-K36
|
1301
1302
1303
1304
1305
1306
|
152
305
457
610
762
914
|
0.9
1.8
2.2
3.7
4.5
5.5
|
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF5936-K42
LF5936-K48
LF5936-K54
LF5936-K60
LF5936-K66
LF5936-K72
|
1307
1308
1309
1310
1311
1312
|
1067
1219
1372
1524
1676
1829
|
6.4
7.3
8.2
9.2
10.1
11.0
|
|
|
| ※ Standard length : 1.010m (53links) |
|
| |

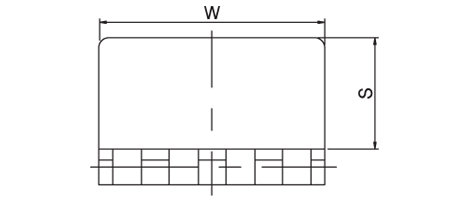

| CODE.NO |
W |
S |
| 1300 |
152 |
25.4 |
5935/5936 |
|
|
| |
| |

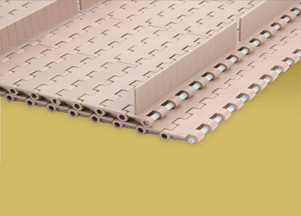

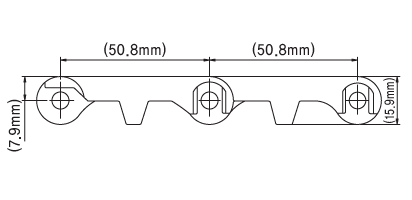

| NET TOP CHAIN SERIES 800 |
STRAIGHT RUN |
|
| |
FLAT TOP, 0% Open Area(Color : White , Gray)
USDA approved(Meat and Poultry, and Dairy) |
|
|
| |
| HT : Polypropylene |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
HT 800-K06
HT 800-K12
HT 800-K18
HT 800-K24
HT 800-K30
HT 800-K36
|
3124
3125
3126
3127
3128
3129
|
152
305
457
610
762
914
|
1.25
2.50
3.75
5.00
6.25
7.50
|
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
HT 800-K42
HT 800-K48
HT 800-K54
HT 800-K60
HT 800-K66
HT 800-K72
|
3130
3131
3132
3133
3134
3135
|
1067
1219
1372
1524
1676
1829
|
8.75
10.00
11.25
12.50
13.75
15.00
|
|
|
| ※ Standard length : 1.016M (20links) |
| |

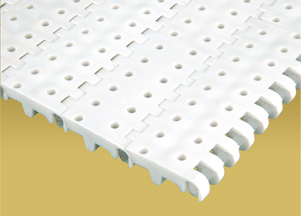

PERFORATED FLAT TOP, 18% Open Area(Color : White , Gray)
USDA approved(Meat and Poultry, and Dairy) |
 |
 |
 |

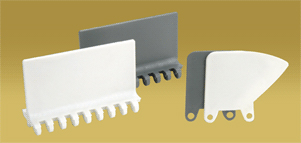

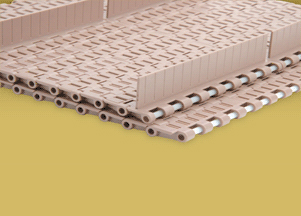

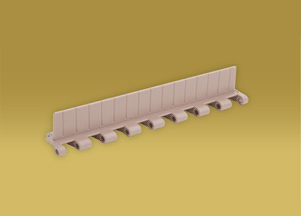

SERIES 800 BELT STREAMLINE FLIGHTS
|
※ 아다치먼트 높이 : 3인치, 2인치
아다치먼트기장 : 2″ 4″ 6″ |
|
|
|
| |
| HT : Polypropylene |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
HT 800-K06
HT 800-K12
HT 800-K18
HT 800-K24
HT 800-K30
HT 800-K36
|
3124
3125
3126
3127
3128
3129
|
152
305
457
610
762
914
|
1.50
2.30
3.45
4.60
5.75
6.90 |
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
HT 800-K42
HT 800-K48
HT 800-K54
HT 800-K60
HT 800-K66
HT 800-K72
|
3130
3131
3132
3133
3134
3135
|
1067
1219
1372
1524
1676
1829
|
8.05
9.20
10.35
11.50
12.65
13.80
|
|
|
| ※ Standard length : 1.016M (20links) |
| |
|
| |
| |

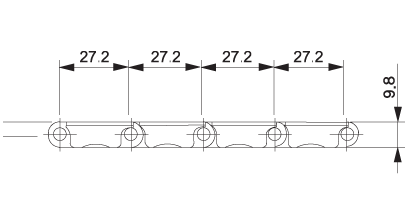

| NET TOP CHAIN SERIES
900 FLAT TOP |
STRAIGHT RUN |
|
| |
|
| |
0% Open Area
Material : LF Acetal (BLUE) |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF 900-K06
LF 900-K12
LF 900-K18
LF 900-K24
LF 900-K30
LF 900-K36
|
3200
3201
3202
3203
3204
3205
|
152
305
457
610
762
914
|
1.15
2.3
3.45
4.6
5.75
6.9 |
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
LF 900-K42
LF 900-K48
LF 900-K54
LF 900-K60
LF 900-K66
LF 900-K72
|
3206
3207
3208
3209
3210
3211
|
1067
1219
1372
1524
1676
1829
|
8.05
9.2
10.35
11.5
12.65
13.8
|
|
|
| ※ Standard length : 1.006M (37links) |
| |
|
| |
| |

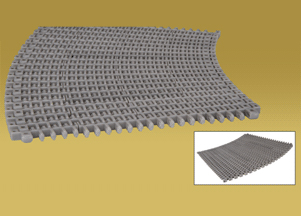

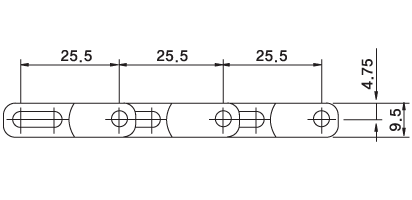

| NET TOP CHAIN SERIES K-CURVE |
STRAIGHT RUN |
|
| |
|
| |
72% Open Area
Material : LF Acetal (Gray) |
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
K-curve - K06
K-curve - K12
K-curve - K18
K-curve - K24
K-curve - K30
K-curve - K36
|
3300
3301
3302
3303
3304
3305
|
152
305
457
610
762
914
|
0.8
1.6
2.4
3.2
4.0
4.8 |
|
| CHAIN
TYPE |
CODE.NO |
CHAIN
WIDTH(K) |
WEIGHT
kg/M |
| MM |
LF |
K-curve - K42
K-curve - K48
K-curve - K54
K-curve - K60
K-curve - K66
K-curve - K72
|
3306
3307
3308
3309
3310
3311
|
1067
1219
1372
1524
1676
1829
|
5.6
6.4
7.2
8.0
8.8
9.6
|
|
|
| ※ Standard length : 1.020M (40links) |
| |

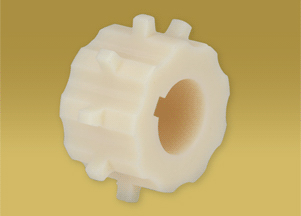

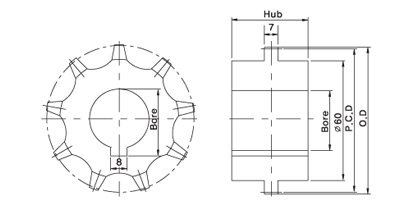

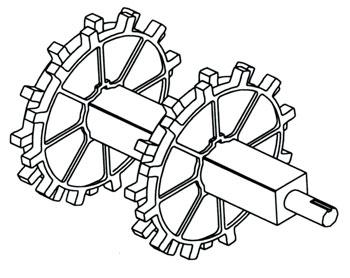

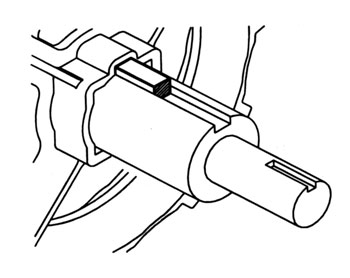

| SPROCKET - NET TOP CHAIN K - CURVE |
STRAIGHT RUN |
|
| |
|
| |
| TEETH |
CODE.NO |
Pitch
Diameter(mm) |
Out
Diameter(mm) |
Hub
Width(mm) |
Round
Bore
mm |
| 7 |
1661 |
58.67 |
59 |
38 |
25 to 30 |
| 9 |
1662 |
74.26 |
75 |
38 |
25 to 30 |
| 15 |
1663 |
122.17 |
122.5 |
38 |
25 to 30 |
|
| |
|
