HOME 제품소개우진프라스틱 TT 체인컨베이어 전체부품 |
|

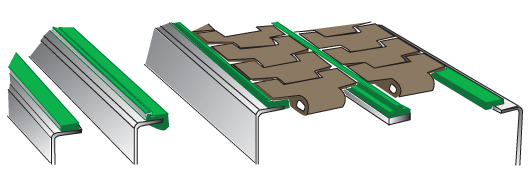

| 컨베이어 전체부품 |
|
| |
 |
|
 |
|

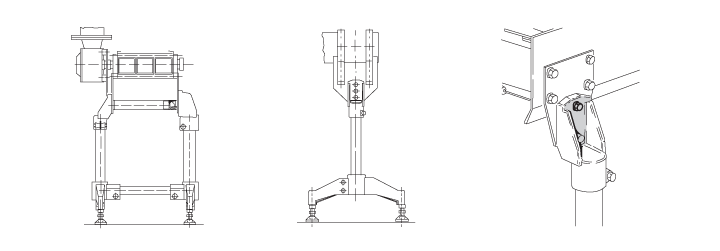

| TWO ARMS SUPPORT
BASEMENT |
|
Material : polyamide,
bushes and screws in
nickel plated brass.
screw is stainless steel
or zinc plated steel |
|
| DF(MM) |
CODE.NO |
WEIGHT
(kg/EA) |
| 48.3 |
1901 |
0.82 |
| 60.3 |
1902 |
0.80 |
|
|
|
| |
 |
|
| TWO ARMS SUPPORT
BASEMENT 180, WITH
JOINT |
|
Material : polyamide,
bushes and screws in
nickel plated brass.
screw is stainless steel
or zinc plated steel |
|
| DF(MM) |
CODE.NO |
WEIGHT
(kg/EA) |
| 48.3 |
1903 |
0.97 |
| 60.3 |
1904 |
0.93 |
|
|
|
| |
 |
|
| THREE ARMS BASEMENT |
|
bushes and screws in
nickel plated brass.
screw is stainless steel
or zinc plated steel |
|
| DF(MM) |
CODE.NO |
WEIGHT
(kg/EA) |
| 48.3 |
1905 |
1.10 |
| 60.3 |
1906 |
1.08 |
|
|
|
| |
|
| |
 |
| |
| |
|
| |
Technical information : Ramextruded
- Max continuous service temperature in air 90 C
- Water absorption coefficient - null |
| |
| |
|
| |
|
| |
|
| |
| |
|
| |
|
| |
|
| |
| |
|
| |
|
| |
|
| |
| |
| CHAIN TENSION GUIDE(C.T.G) |
|
|
| |
TENSION GUIDE는 종전의 각종 TENSION장치와 전혀 다른 간단한 구조로서 CHIAN궤도의 공중을 이용하여 부착할 수 있는 간단한 TENSIONING 장치입니다.
|
|
Tension guide is different from other tension equipment
but is very simple. It is a simple tensioning device that can
be attached to the chain orbit through air.
|

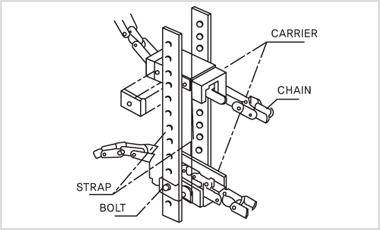

● 구조
CHAIN의 SIDE PLATE를 특수수지로 제작된 CARRIER로 잡아 주어서 CHAIN의 늘어지는 상태를 조정하며 STRAP 넓이를 조정함.
|
|
● STRUCTURE
Chain slide plate is supported by carrier made with special resin to control the lagging of chain and to adjust the width of strap.
|
● 선정기준
CHAIN GUIDE의 성능을 충분히 발휘시키기 위하여 하기선정 기준을 참고 하십시오.
|
|
● SELECTION CRITERIA
Refer to the below criteria to maximize the chain guide functions. |

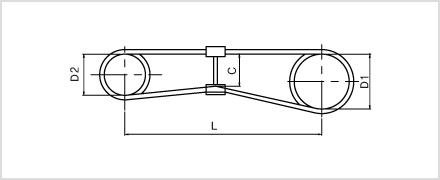

| ● 2축의 경우 |
|
|
| <축의 배열> |
|

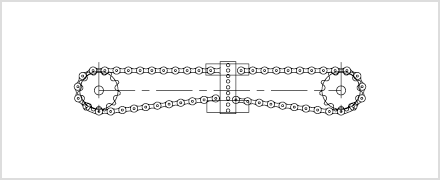

<CHAIN TENSION GUIDE> |
 |
|
 |
|
| |
● 선정방법 ①SPROCKET=D1/D2 ≤ 4 ②교비=C/D2 ≤ 0.85 ③구성비=D1/L 0.5 0.5
● CHAIN 속도 ①무 급 유 = 150M/Min ②통 하 급 유 = 300M/Min ③급 유 = 450M/Min |
| |
 |

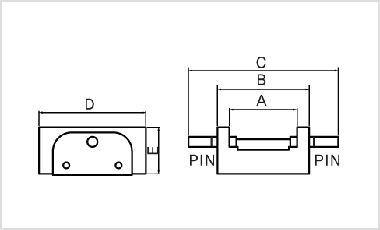

| 품목 |
CODE.NO |
A |
B |
C |
D |
E |
kg/SET |
| CTG-40 |
2210 |
23.8 |
39.6 |
71.4 |
76.2 |
25.4 |
0.22 |
| CTG-50 |
2211 |
28.5 |
44.4 |
76.2 |
88.9 |
25.4 |
0.28 |
| CTG-60 |
2212 |
34.9 |
50.8 |
82.6 |
101.6 |
25.4 |
0.45 |
| CTG-80 |
2213 |
44.4 |
60.2 |
95.0 |
114.3 |
25.4 |
0.56 |
| CTG-100 |
2214 |
52.3 |
68.2 |
106.3 |
127.0 |
31.8 |
0.84 |
| CTG-120 |
2215 |
68.2 |
87.3 |
152.4 |
139.7 |
38.1 |
1.09 |
|
| |
|
 |
TENSION GUIDE 적용법
| 품목 |
ROLLER CHAIN NO |
CONVEYOR CHAIN NO |
| CTG-40 |
40, 25-2 |
C-2040 |
| CTG-50 |
50,35-2 |
C-2050 |
| CTG-60 |
60, 40-2, 35-3 |
C-2060 |
| CTG-80 |
80, 50-2, 35-4 |
C-2080 |
| CTG-100 |
100, 60-2, 40-3 |
C-2100, 81-X |
|
| |
|
 |

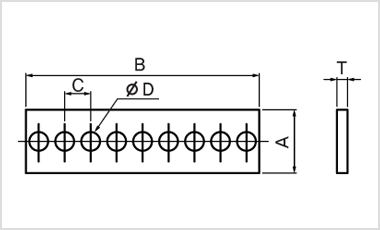

STRAP 촌법표
| 품목 |
A |
B |
C |
D |
E |
| CTG-35 |
19.1 |
406.4 |
- |
- |
3.2 |
| CTG-40~60 |
25.4 |
406.4 |
12.7 |
7.4 |
4.7 |
| CTG-80~120 |
38.1 |
406.4 |
12.7 |
7.4 |
6.4 |
| CTG-14~180 |
76.2 |
406.4 |
12.7 |
7.4 |
6.4 |
|
|
|
| |
| |
