| LBW 시리즈 |
|
| |
 |
| |
|
| |
 |
사양표 |

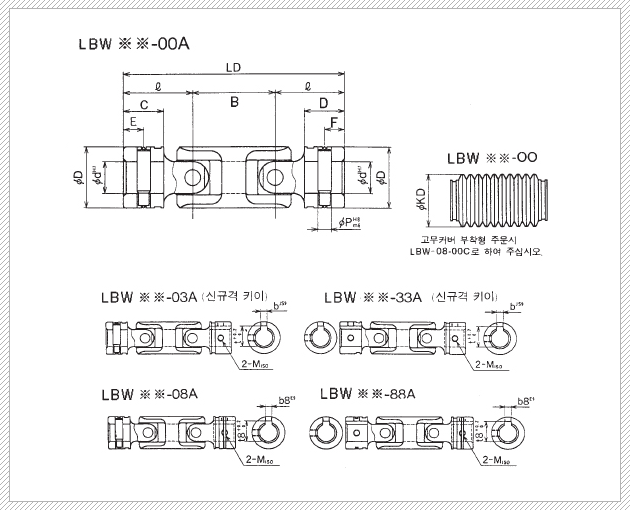

(단위 m/m) |
|
|
유니버설조인트
사이즈 |
DIMENSIONS |
| d |
D |
LD |
B |
ℓ |
D |
F |
P |
b |
t |
b8 |
t8 |
M |
KD |
| LBW-06-KT |
6 |
12 |
49.5 |
18.5 |
15.5 |
9 |
4.5 |
3 |
- |
- |
- |
- |
3 |
- |
| LBW-08-KT |
8 |
15 |
58 |
22 |
18 |
10 |
5 |
3.5 |
- |
- |
- |
- |
3 |
26 |
| LBW-10-KT |
10 |
19 |
67.5 |
25.5 |
21 |
12 |
6 |
4.5 |
3 |
11.4 |
4 |
11.5 |
5 |
32 |
| LBW-12-KT |
12 |
23 |
83 |
31 |
26 |
15 |
7.5 |
5 |
4 |
13.8 |
4 |
13.5 |
5 |
36 |
| LBW-14-KT |
14 |
26 |
94.5 |
35.5 |
29.5 |
17 |
8.5 |
5.8 |
5 |
16.3 |
5 |
16 |
6 |
40 |
| LBW-16-KT |
16 |
30 |
117.5 |
43.5 |
37 |
22 |
11 |
6.5 |
5 |
18.3 |
5 |
18 |
6 |
46 |
| LBW-18-KT |
18 |
33 |
129 |
48 |
40.5 |
23.5 |
11.75 |
7 |
6 |
20.8 |
5 |
20 |
6 |
52 |
| LBW-20-KT |
20 |
36 |
139 |
52 |
43.5 |
25 |
12.5 |
8 |
6 |
22.8 |
5 |
22 |
6 |
58 |
| LBW-22-KT |
22 |
40 |
150 |
56 |
47 |
27 |
13.5 |
9 |
6 |
24.8 |
7 |
25 |
6 |
62 |
| LBW-25-KT |
25 |
44 |
168 |
63 |
52.5 |
30 |
15 |
10 |
8 |
28.3 |
7 |
28 |
8 |
68 |
| LBW-30-KT |
30 |
51 |
195 |
73 |
61 |
35 |
17.5 |
11.5 |
8 |
33.3 |
7 |
33 |
8 |
82 |
| LBW-35-KT |
35 |
59 |
224 |
84 |
70 |
40 |
20 |
13 |
10 |
38.3 |
10 |
38.5 |
10 |
90 |
| LBW-40-KT |
40 |
67 |
251 |
94 |
78.5 |
45 |
22.5 |
14.5 |
12 |
43.3 |
10 |
43.5 |
10 |
100 |
| LBW-45-KT |
45 |
75 |
282 |
106 |
88 |
50 |
25 |
16 |
14 |
48.8 |
12 |
48.5 |
10 |
110 |
| LBW-50-KT |
50 |
83 |
304 |
113 |
95.5 |
55 |
27.5 |
17.5 |
14 |
53.8 |
12 |
53.5 |
10 |
120 |
| LBW-60-KT |
60 |
98 |
360 |
124 |
118 |
70 |
35 |
19.5 |
|
|
|
|
|
|
|
|
|
| |
|
|
