| LDW 시리즈 |
|
| |
 |
| |
|
| |
 |

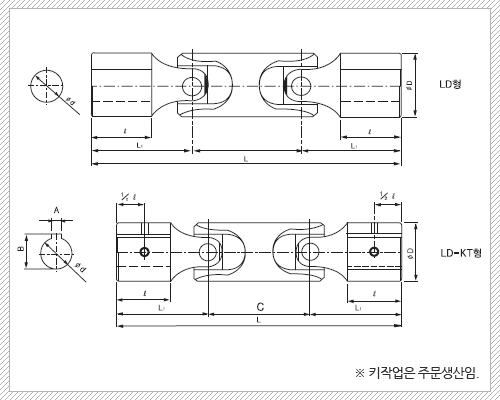

사양표 |
(단위 m/m) |
|
|
| 형식 |
kgf-m |
kgf-m |
(˚) |
Ø d H7 |
ØD |
L |
L₁ |
C |
ℓ |
A x BJS9 |
탭 |
kg |
| LDW-6 |
LD-006KT |
0.8 |
1.6 |
30 |
6 |
12 |
75 |
25 |
25 |
18.5 |
- |
- |
0.045 |
| LDW-8 |
LD-008KT |
1.5 |
3.2 |
30 |
8 |
16 |
86 |
28 |
30 |
19 |
- |
- |
0.090 |
| LDW-10 |
LD-0010KT |
3.0 |
7.5 |
30 |
10 |
20 |
102 |
34 |
34 |
24 |
3 x 11.8 |
M 5 |
0.160 |
| LDW-12 |
LD-0012KT |
4.5 |
12.0 |
30 |
12 |
24 |
125 |
42 |
41 |
29 |
4 x 13.8 |
M 5 |
0.300 |
| LDW-14 |
LD-0014KT |
7.0 |
17.0 |
30 |
14 |
28 |
143 |
47 |
49 |
32 |
5 x 16.3 |
M 6 |
0.500 |
| LDW-16 |
LD-0016KT |
10.0 |
25.0 |
30 |
16 |
32 |
158 |
52 |
54 |
35 |
5 x 18.3 |
M 6 |
0.650 |
| LDW-18 |
LD-0018KT |
13.0 |
32.0 |
30 |
18 |
36 |
180 |
60 |
60 |
39 |
6 x 20.8 |
M 6 |
0.950 |
| LDW-20 |
LD-0020KT |
18.0 |
45.0 |
30 |
20 |
40 |
188 |
62 |
64 |
40 |
6 x 22.8 |
M 6 |
1.200 |
| LDW-22 |
LD-0022KT |
24.0 |
60.0 |
30 |
22 |
44 |
200 |
65 |
70 |
41 |
6 x 24.8 |
M 6 |
1.500 |
| LDW-25 |
LD-0025KT |
30.0 |
80.0 |
30 |
25 |
50 |
220 |
70 |
80 |
43 |
8 x 28.3 |
M 8 |
2.200 |
| LDW-30 |
LD-0030KT |
45.0 |
115.0 |
30 |
30 |
60 |
275 |
89 |
97 |
56 |
8 x 33.3 |
M 8 |
4.000 |
| LDW-35 |
LD-0035KT |
55.0 |
180.0 |
30 |
35 |
70 |
310 |
100 |
110 |
62 |
10 x 38.3 |
M 8 |
6.050 |
| LDW-40 |
LD-0040KT |
85.0 |
250.0 |
30 |
40 |
80 |
350 |
114 |
122 |
70 |
12 x 43.3 |
M 10 |
9.500 |
| LDW-45 |
LD-0045KT |
125.0 |
350.0 |
30 |
45 |
90 |
390 |
125 |
140 |
76 |
- |
- |
12.000 |
| LDW-50 |
LD-0050KT |
180.0 |
490.0 |
30 |
50 |
100 |
426 |
135 |
156 |
80 |
- |
- |
17.600 |
| LDW-60 |
LD-0060KT |
280.0 |
650.0 |
30 |
60 |
120 |
485 |
150 |
185 |
85 |
- |
- |
30.000 |
|
|
|
| |
|
|
