| LSC 시리즈 |
|
| |
 |
| |
|
| |
 |
사양표 |
(단위 m/m) |
|
|
유니버설조인트
사이즈 |

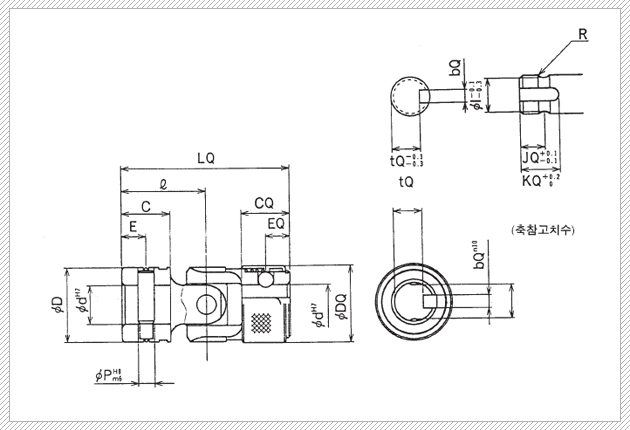

DIMENSIONS |
| d |
D |
LQ |
ℓ |
C |
E |
P |
DQ |
CQ |
EQ |
I |
R |
JQ |
bQ |
tQ |
KQ |
| LSC-06-0KT |
8 |
15 |
38 |
18 |
10 |
5 |
3.5 |
19 |
12 |
4 |
6.56 |
2 |
8 |
3 |
5.8 |
10 |
| LSC-10-0KT |
10 |
19 |
42 |
21 |
12 |
6 |
4.5 |
21.5 |
12 |
4 |
9.06 |
2 |
8 |
4 |
7.5 |
9 |
| LSC-12-0KT |
12 |
23 |
52 |
26 |
15 |
7.5 |
5 |
23.8 |
15 |
7.5 |
10.48 |
2.4 |
7.5 |
4 |
8.8 |
12 |
| LSC-14-0KT |
14 |
26 |
59 |
29.5 |
17 |
8.5 |
5.8 |
29 |
17 |
8.5 |
11.88 |
2.8 |
8.5 |
5 |
10.3 |
14 |
| LSC-16-0KT |
16 |
30 |
74 |
37 |
22 |
11 |
6.5 |
35 |
22 |
11 |
13.3 |
3.2 |
11 |
5 |
12.3 |
18 |
| LSC-18-0KT |
18 |
33 |
81 |
40.5 |
23.5 |
11.75 |
7 |
38 |
23.5 |
11.75 |
15.3 |
3.2 |
11.75 |
5 |
14.5 |
21 |
| LSC-20-0KT |
20 |
36 |
87 |
43.5 |
25 |
12.5 |
8 |
42 |
25 |
12.5 |
17.12 |
4 |
12.5 |
6 |
16.0 |
23 |
| LSC-22-0KT |
22 |
40 |
94 |
47 |
27 |
13.5 |
9 |
44 |
27 |
13.5 |
19.12 |
4 |
13.5 |
6 |
17.8 |
25 |
| LSC-25-0KT |
25 |
44 |
105 |
52.5 |
30 |
15 |
10 |
49 |
30 |
15 |
21.54 |
4.4 |
15 |
7 |
21 |
28 |
| LSC-30-0KT |
30 |
51 |
122 |
61 |
35 |
17.5 |
11.5 |
56 |
35 |
17.5 |
26.95 |
4.8 |
17.5 |
7 |
25.3 |
30 |
|
|
|
| |
|
|
